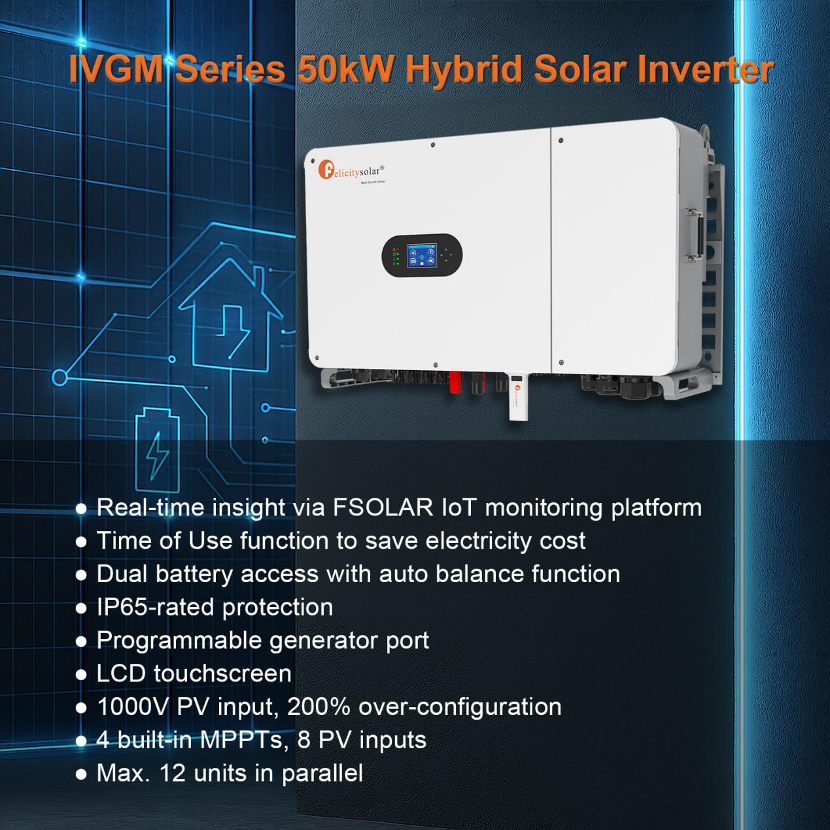

Complete Guide to Using a 50kW Hybrid Inverter

The 50kW hybrid inverter plays a crucial role in solar energy systems, integrating solar power generation and grid interaction all in one device. It is ideal for larger residential homes or commercial properties that require a powerful, efficient, and flexible energy solution. In this guide, we will walk you through the steps of setting up, using, and maintaining your 50kW hybrid inverter for optimal performance.

What is a 50kW Hybrid Inverter?

A 50kW hybrid inverter is an advanced solar inverter that combines three critical functions:

l  Inverter: Converts the DC power generated by solar panels into AC power for home or commercial use.

l  Energy Storage Controller: Manages the charging and discharging of battery storage.

l  Grid Connection: Allows excess power to be sent back to the grid and pulls energy from the grid when necessary.

This system is perfect for situations where you need a combination of solar energy, storage, and grid backup.

Setting Up the 50kW Hybrid Inverter

Step 1: Pre-installation Check

Before installing the 50kW hybrid inverter, ensure that all components are in good condition. These include the inverter, solar panels, batteries, charge controllers, and grid connection equipment.

l  Check inverter compatibility: Confirm that your inverter is compatible with the solar panels and battery system you are using.

l  Verify system capacity: Ensure that your battery and solar panel system match the inverter’s capacity (50kW). Overloading the inverter can cause damage.

Step 2: Install the Solar Panels

Install your solar panels according to the manufacturer’s guidelines. Ensure they are positioned to capture maximum sunlight and connected properly to the inverter.

l  Mount the panels: Panels should be installed on rooftops or open spaces that receive direct sunlight.

l  Wiring: Connect the panels to the inverter using appropriate cables that can handle the output of your solar system.

Step 3: Wiring the Inverter

The 50kW hybrid inverter needs to be connected to both the battery storage system and the grid.

l  Grid connection: Connect the inverter to the utility grid to allow for excess energy to flow back into the grid when needed.

l  Battery connection: Connect the inverter to the battery system for energy storage. Ensure the battery voltage and capacity are suitable for the inverter.

Step 4: Configure System Settings

Once everything is connected, configure the inverter settings to suit your energy needs.

l  Solar charging priority: Set the inverter to prioritize solar power for charging the batteries.

l  Grid support: If needed, configure the inverter to automatically switch to grid power when solar energy is insufficient.

Operating the 50kW Hybrid Inverter

1. Monitor Solar Production

The 50kW hybrid inverter is equipped with features that allow you to monitor the performance of your solar system. Many models include Wi-Fi monitoring, enabling you to track solar power production, battery status, and grid interaction through a mobile app or web interface.

Real-time data: Monitor the power being generated by your solar panels, the amount stored in the battery, and how much power is being used or sent to the grid.

Energy consumption reports: Check for patterns in energy use to optimize efficiency.

2. Battery Management

The hybrid inverter manages the charging and discharging of the battery system to ensure that power is available when you need it most.

Charge and discharge settings: Set your desired charge and discharge limits based on battery capacity to prevent overcharging or deep discharging.

Backup power mode: In case of a grid failure, the inverter can automatically switch to battery power to provide backup.

3. Grid Connection Settings

If you wish to feed excess solar energy back to the grid, configure your 50kW hybrid inverter to do so. Some systems allow you to set a zero-export mode to prevent energy from being sent back to the grid.

l  Grid-export mode: When solar production exceeds demand, excess power can be sent to the grid, allowing you to earn credits from your utility company.

l  Grid feeding limits: Ensure that the inverter’s output matches local regulations regarding the amount of energy that can be exported to the grid.

4. Energy Usage Prioritization

Your hybrid inverter can be configured to prioritize different energy sources based on your needs.

l  Solar-first: Set the inverter to use solar energy as the first priority, followed by battery storage and finally grid power.

l  Grid-first: In some cases, you may prefer to use grid power first and store excess solar energy for later use.

Conclusion

The 50kW hybrid inverter is a powerful solution for anyone looking to make the most of solar energy. By following the steps outlined in this guide, you can easily set up and maintain your solar system, ensuring long-term performance and significant cost savings.
