QE by Sensor Type — CCD, CMOS, and Tucsen dhyana sCMOS Compared

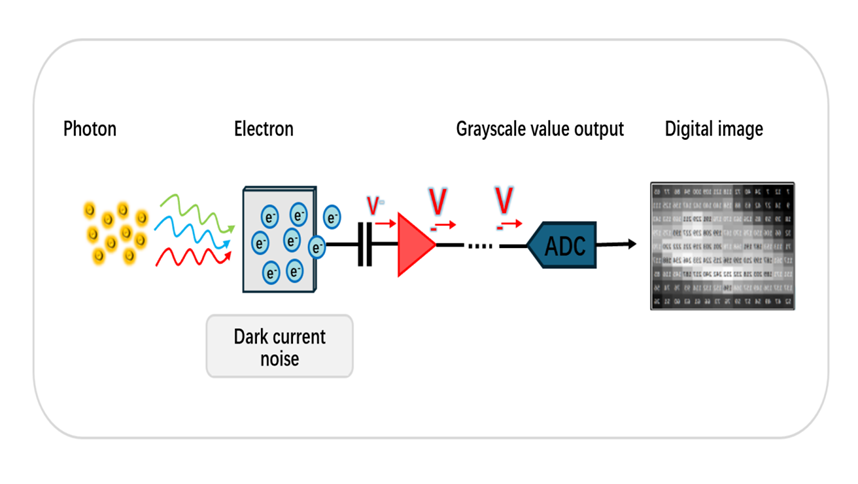

Different image sensor technologies exhibit fundamentally different quantum

efficiency characteristics, and understanding these differences is essential for

selecting the right camera for any scientific application. The three major sensor

types currently used in scientific imaging — CCD, CMOS, and sCMOS — each

offer distinct advantages and limitations that affect their QE performance, as

well as their suitability for various imaging scenarios. This article provides a

comprehensive comparison of these sensor technologies from the perspective

of quantum efficiency and related performance parameters.

CCD Sensors: The Traditional Choice

Charge-coupled devices have long been favored in scientific imaging for their

low noise and high quantum efficiency. The traditional CCD architecture, in

which charge is transferred across the sensor surface to a readout register,

allows for exceptionally clean signal extraction with minimal electronic noise.

Peak quantum efficiency for CCD sensors typically falls between 70 and 90

percent, making them well suited for applications such as astronomy and

long-exposure imaging where light levels are extremely low and exposure

times may extend to minutes or even hours. The combination of high QE and

low noise has made CCDs the gold standard for many scientific applications for

decades.

However, CCD sensors have inherent limitations that have become increasingly significant as imaging demands have evolved. The serial readout architecture

of CCDs limits their frame rates, making them unsuitable for applications

requiring high-speed acquisition. CCDs also consume more power and

generate more heat than their CMOS counterparts, which can complicate thermal management in sensitive imaging systems. Additionally, the

manufacturing process for high-performance CCDs is more complex and expensive than for CMOS sensors, contributing to higher camera costs.

CMOS Sensors: The Modern Alternative

CMOS sensors were once considered inferior to CCDs for scientific imaging

due to lower quantum efficiency and higher read noise. However, modern

CMOS technology has advanced dramatically, and today’s sensors — especially

back-illuminated designs — have significantly closed the performance gap.

Many modern CMOS sensors now reach peak quantum efficiency values above

80 percent, offering excellent sensitivity that rivals or even exceeds that of

traditional CCDs. The advantages of CMOS sensors include faster frame rates,

lower power consumption, and the ability to integrate more functionality

directly on the sensor chip.

The performance of modern CMOS sensors is particularly evident in

applications requiring both speed and sensitivity. The ability to achieve high QE

while maintaining fast readout speeds makes CMOS technology ideal for

applications such as live-cell imaging, where capturing dynamic biological processes demands both temporal resolution and photon efficiency. The lower power consumption of CMOS sensors also simplifies thermal management,

reducing the cooling requirements that are often necessary for low-light

imaging. Tucsen dhyana series of sCMOS cameras represents the pinnacle

of this evolution, combining the speed advantages of CMOS with the

exceptional QE required for scientific applications.

sCMOS Sensors: The Best of Both Worlds

Scientific CMOS, or sCMOS, represents a specialized class of CMOS sensors

designed specifically for scientific imaging applications. sCMOS technology

combines the high quantum efficiency typically associated with CCDs — often

in the 70 to 95 percent range — with the low noise, high dynamic range, and

fast acquisition capabilities of advanced CMOS designs. This combination

makes sCMOS sensors particularly well suited for the most demanding

scientific applications, including live-cell imaging, high-speed microscopy, and

multi-channel fluorescence experiments. As a high sensitivity camera platform,

sCMOS technology has become the preferred choice for researchers who

require both sensitivity and speed.

The exceptional performance of sCMOS sensors is achieved through careful

optimization of pixel design, readout architecture, and manufacturing

processes. Back-illuminated sCMOS sensors, in which the photosensitive layer

is placed closer to the surface of the sensor, achieve the highest quantum

efficiencies by eliminating the light losses that occur in front-illuminated

designs. The Tucsen dhyana series of sCMOS cameras exemplifies this technology, delivering QE values that consistently exceed 90 percent across

broad spectral ranges while maintaining the low noise and high speed that

researchers require for advanced imaging applications.

Comparing QE Across Sensor Types

The figure below illustrates how quantum efficiency varies across different

sensor types and wavelengths. The graph shows the likelihood of photon

detection versus photon wavelength for four example cameras, demonstrating

how different sensor variants and coatings can dramatically shift QE curves.

Understanding these curves is essential for matching a camera’s spectral

response to the specific requirements of any imaging application.

Quantum efficiency is highly wavelength dependent, and this dependence is

critical to understand when selecting a camera for specific applications. The

majority of silicon-based camera sensors exhibit peak quantum efficiency in

the visible part of the spectrum, most commonly in the green to yellow region

from approximately 490 to 600 nanometers. However, QE curves can be

modified through sensor coatings and material variants to provide peak QE

around 300 nanometers in the ultraviolet, around 850 nanometers in the

near-infrared, and many options in between.

All silicon-based cameras exhibit a decline in quantum efficiency toward 1100

nanometers, at which point photons no longer have enough energy to release

photoelectrons from the silicon lattice. UV performance can be severely limited

in sensors with microlenses or UV-blocking window glass, which restrict

short-wavelength light from reaching the sensor surface. Between these

extremes, QE curves are rarely smooth and even, often including small peaks

and troughs caused by the different material properties and transparencies of

the layers that comprise each pixel. Tucsen dhyana series is engineered to

provide smooth, high QE across the entire visible spectrum and into the NIR,

making it a versatile choice for diverse applications.

For applications requiring ultraviolet or near-infrared sensitivity, carefully

considering quantum efficiency curves becomes much more important, as QE

can vary by many times between different cameras at the extreme ends of the

spectrum. This is where the Tucsen dhyana series demonstrates its versatility,

with optimized coatings and sensor variants that maintain high QE across

extended spectral ranges from the deep ultraviolet through the near-infrared.

Specialized Sensor Technologies

Beyond standard silicon-based sensors, other materials can exhibit completely

different quantum efficiency characteristics. InGaAs infrared cameras, based

upon indium gallium arsenide rather than silicon, can detect broad wavelength

ranges in the near-infrared up to approximately 2700 nanometers, depending

upon the sensor variant. These specialized sensors are essential for

applications that require imaging beyond the silicon cutoff wavelength.

However, for most scientific applications in the visible and NIR ranges, sCMOS technology provides an optimal balance of high QE, low dark current, and fast

readout.

Some silicon camera sensors can also operate in the visible light spectrum while being capable of detecting certain wavelengths of X-rays. However, such

cameras usually require specific engineering to cope both with the impact of

X-rays on camera electronics and with the vacuum chambers generally used

for X-ray experiments. These specialized applications demand careful

consideration of both quantum efficiency and the additional engineering

required for reliable operation.
