What Are the Steps in Plastic Injection Molding Malaysia Process?

Plastic Injection Molding Malaysia is a widely used manufacturing method for producing accurate, durable, and consistent plastic components. In Malaysia, this process supports industries such as automotive, electronics, medical devices, packaging, household products, and industrial equipment. It involves melting plastic material and injecting it into a specially designed mold to create a specific shape.

Although the process may appear simple, producing high-quality components requires several carefully controlled stages. Each step affects the final product’s strength, appearance, dimensions, and performance. Understanding these stages can help businesses choose the right manufacturing process and work effectively with an experienced injection molding manufacturer.

What Are the Main Process Stages?

1. Product Design

The process begins with product design. Before manufacturing starts, engineers create a detailed digital model of the required plastic component. Computer-aided design (CAD) software is commonly used to define the product’s dimensions, shape, wall thickness, openings, curves, and other features.

At this stage, designers must consider how the component will be manufactured. A design that looks suitable on a screen may create problems during molding if it contains excessively thick sections, sharp corners, or difficult angles.

Design teams therefore evaluate factors such as:

• Wall thickness and uniformity
• Draft angles for easy mold release
• Ribs and structural supports
• Shrinkage and dimensional tolerances
• Gate and ejector locations

Proper design planning can reduce manufacturing problems and unnecessary mold modifications later.

2. Material Selection

The next stage involves selecting the right plastic material for Plastic Injection Molding Malaysia. The choice depends on the product’s intended application and required properties, including strength, flexibility, heat resistance, chemical resistance, appearance, and cost. Common materials include ABS, polypropylene, polyethylene, polycarbonate, nylon, and engineering plastics.

Different materials also require different processing conditions. Manufacturers consider melting temperature, flow characteristics, cooling requirements, and other material properties when selecting the resin. Choosing a suitable material helps ensure that the finished component performs reliably.

3. Mold Design

After the product design and material are confirmed, Plastic Injection Moulding Manufacturers Malaysia develop an injection mold. The mold determines the shape and many surface characteristics of the finished component. Molds are commonly manufactured from durable materials such as steel or aluminum, depending on production requirements.

A mold may contain one or multiple cavities. Multi-cavity molds can produce several components during one cycle, improving production efficiency. Engineers also design runners, gates, cooling channels, and ejector systems to ensure proper material flow and efficient part removal.

4. Mold Preparation

Before production begins, the completed mold is installed securely into the injection molding machine. Necessary cooling connections and other systems are established, and the machine is configured according to the product and material requirements.

Important settings include injection pressure, injection speed, temperature, holding pressure, cooling time, and cycle time. Plastic resin may also require drying before processing because moisture can cause defects such as bubbles, surface marks, weak areas, and inconsistent appearance.

5. Plastic Melting

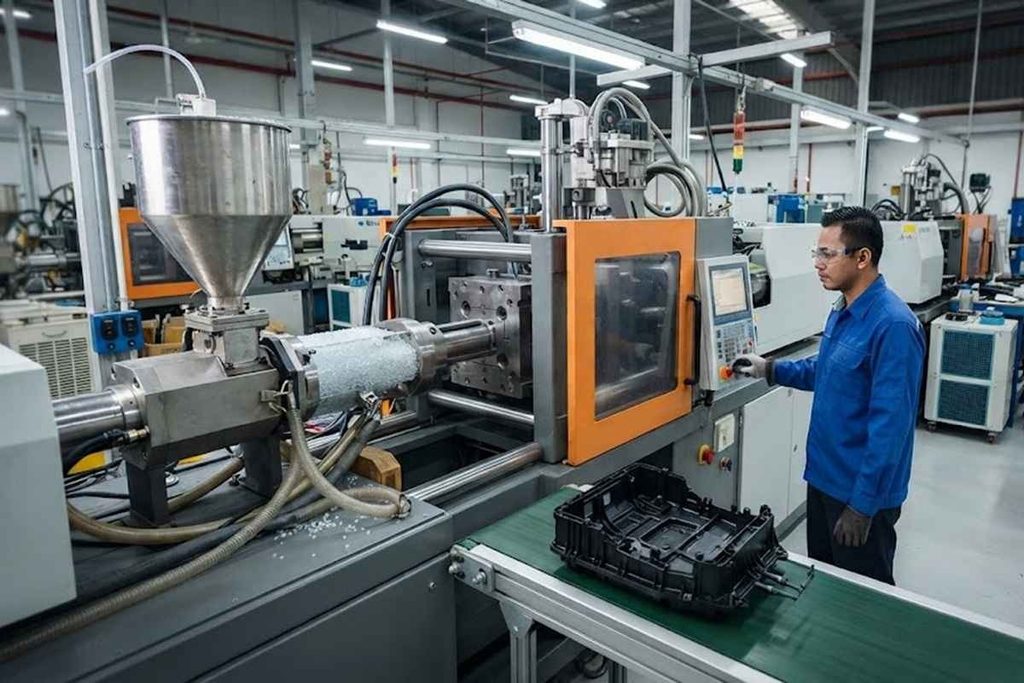

Plastic pellets are placed into the machine’s hopper before entering a heated barrel containing a rotating screw. As the screw rotates, the pellets move forward while heat and mechanical friction gradually soften them into molten plastic.

Temperature control is important during this stage. Insufficient heat may prevent proper material flow, while excessive heat can damage certain polymers. Maintaining suitable processing temperatures helps create consistent molten material for injection.

6. Injection Stage

Once enough molten plastic has accumulated, Plastic Injection Molding Malaysia enters the injection stage. The screw moves forward and pushes the molten material through the nozzle and into the mold cavity under controlled pressure. The material passes through the runner and gate system before filling the cavity.

Injection speed and pressure must be carefully controlled to achieve proper filling. Manufacturers monitor the process to reduce problems such as incomplete filling, flash, weld lines, burn marks, and trapped air. Proper machine settings and mold design are essential for consistent results.

7. Holding Pressure

After the cavity is filled, pressure is maintained for a specific period. This stage is known as the holding or packing phase. Maintaining pressure allows additional material to enter the cavity while the plastic begins to cool and shrink.

Holding pressure helps improve dimensional accuracy and reduces defects such as sink marks and internal voids. The appropriate pressure and duration depend on the plastic material, product design, mold configuration, and required tolerances.

8. Cooling

Cooling begins after the mold cavity has been filled and packed. The plastic remains inside the mold while it gradually solidifies. Cooling channels circulate a cooling medium through the mold to remove heat from the molded component.

Efficient cooling helps reduce cycle time while maintaining product quality. However, cooling must be properly balanced because uneven or excessive cooling can contribute to warpage, shrinkage differences, and dimensional inconsistencies. Manufacturers therefore optimize cooling time and channel design.

9. Mold Opening

Once the plastic component has cooled sufficiently, the machine opens the mold. The two mold halves separate, exposing the newly formed component inside the cavity.

The mold-opening movement must be carefully controlled to prevent damage to the component or tooling. Complex products may require specialized mechanisms to release areas that could otherwise remain locked inside the mold.

10. Part Ejection

After the mold opens, Plastic Injection Molding Malaysia uses ejector pins or other mechanisms to push the finished component from the mold cavity. Depending on the production system, the part may be collected manually, placed on a conveyor, or removed automatically using robotic equipment.

Ejection must be performed carefully because excessive force can leave marks or deform delicate features. Proper draft angles and suitable ejector positioning make part removal smoother and more reliable.

11. Finishing and Inspection

After ejection, the molded component may require additional finishing. Depending on the product, manufacturers may remove excess plastic from gates or runners, trim edges, polish surfaces, assemble components, or perform other secondary operations.

Quality inspection is also carried out to ensure that the product meets the required specifications. Manufacturers may check dimensions, weight, appearance, strength, functionality, and other characteristics.

Typical quality checks can include:

• Dimensional measurement
• Visual inspection
• Surface-quality evaluation
• Functional testing
• Material or strength testing when required

Consistent inspection helps identify production issues early and supports reliable product quality.

12. Packaging and Delivery

Once products pass inspection, they are packaged according to customer requirements. Proper packaging protects components from scratches, contamination, moisture, and damage during storage and transportation.

The finished products can then be stored or delivered for assembly, distribution, or further manufacturing. For high-volume projects, effective production planning and inventory management help maintain a consistent and reliable supply.

Why Choose PTD Services?

Professional Tools & Dies Sdn Bhd (PTD) provides manufacturing solutions focused on precision, quality, and reliable production. With experience in tooling and plastic injection molding, it can support businesses through important stages of the manufacturing process, from mold development and preparation to producing consistent plastic components according to project requirements.

Choosing PTD can help businesses benefit from a structured manufacturing approach and attention to product quality. It focuses on meeting customer requirements while supporting efficient production, accurate tooling, and dependable results for different industrial applications.

Conclusion

Plastic Injection Molding Malaysia involves a series of carefully controlled stages, starting with product design and material selection and continuing through mold development, melting, injection, cooling, ejection, inspection, and packaging. Each stage contributes to the quality, consistency, and efficiency of the finished product.

Understanding these steps can help businesses communicate their requirements, identify potential manufacturing challenges, and make better decisions about materials and tooling. Working with an experienced injection molding manufacturer can also help ensure reliable production, consistent quality, and efficient manufacturing.
