Choosing the Right Encoder: Incremental vs. Absolute Encoders

What Are Absolute Encoders?

Absolute encoders are advanced motion control devices that provide unique position values at every point of rotation or linear movement. Unlike incremental encoders, which measure relative changes, absolute encoders offer precise and continuous position feedback without requiring a reference point. This makes them essential in applications where maintaining exact positioning is critical, even after power interruptions.

The key feature of absolute encoders is their ability to generate a unique digital code for each position. This capability ensures that the system knows its exact position immediately upon startup, eliminating the need for rehoming procedures. Absolute encoders come in two main types: single-turn and multi-turn. Single-turn encoders measure position within one revolution, while multi-turn encoders track positions over multiple revolutions, often used in complex motion systems.

Absolute encoders are integral to industries that demand high precision, such as robotics, aerospace, and medical equipment. Their reliability, accuracy, and ability to function in harsh environments make them indispensable for modern automation systems. Understanding their functionality and advantages is the first step in leveraging their full potential.

How Absolute Encoders Work: The Science Behind Precision

Absolute encoders operate by using optical, magnetic, or capacitive technologies to detect position. A typical optical absolute encoder features a rotating disk with unique patterns for each position and a stationary sensor array that reads these patterns. As the disk moves, the sensor detects the unique code associated with each position and converts it into a digital signal.

Magnetic absolute encoders rely on changes in magnetic fields to determine position. These encoders are often used in applications where environmental robustness is a priority. Capacitive encoders, though less common, use changes in capacitance to detect position, offering a cost-effective solution for certain applications.

One key advantage of absolute encoders is their ability to retain position data even during power loss. This is achieved through non-volatile memory or battery backup systems that store the encoder’s last known position. This feature is particularly valuable in systems that require precise positioning at all times.

By understanding how absolute encoders work, you can select the right type and technology to achieve unparalleled precision in your motion control systems.

Key Advantages of Absolute Encoders in Industrial Applications

Absolute encoders offer several advantages that make them a preferred choice in industrial applications. The most significant benefit is their ability to provide accurate position feedback without requiring rehoming, saving time and improving efficiency. This is especially critical in systems where downtime can result in significant costs.

Another advantage is their versatility. Absolute encoders can operate effectively in harsh environments, including those with high temperatures, moisture, dust, or vibrations. Their robust design ensures consistent performance under challenging conditions. Additionally, absolute encoders are available in various configurations, such as hollow shaft, solid shaft, and modular designs, making them adaptable to diverse applications.

The high resolution of absolute encoders allows for precise motion control, which is essential in industries like robotics, aerospace, and manufacturing. Their ability to support multi-turn tracking further enhances their utility in complex systems where position must be monitored over large distances or rotations.

Overall, absolute encoders provide reliability, precision, and flexibility, making them a cornerstone of modern automation and motion control.

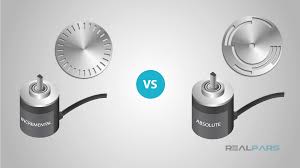

Absolute Encoders vs. Incremental Encoders: A Comparative Overview

While both absolute encoders and incremental encoders are used for position tracking, their functionalities differ significantly. Absolute encoders provide a unique position value for every point of rotation, making them ideal for applications where exact positioning is crucial. Incremental encoders, on the other hand, measure relative motion and require a reference point to determine absolute position.

Absolute encoders retain position information during power loss, whereas incremental encoders lose all position data without external backup systems. This makes absolute encoders more reliable in critical systems. However, incremental encoders are often simpler and more cost-effective, making them suitable for less demanding applications.

In terms of resolution, both encoder types can achieve high precision, but absolute encoders offer the added advantage of multi-turn tracking, enabling them to monitor position across multiple revolutions. Incremental encoders are typically better suited for applications where relative position or speed measurement is sufficient.

Choosing between absolute and incremental encoders depends on the specific requirements of your application. Understanding these differences ensures you select the right encoder for optimal performance.

Applications of Absolute Encoders Across Different Industries

Absolute encoders are indispensable in a wide range of industries due to their precision and reliability. In robotics, absolute encoders enable precise positioning and control of robotic arms, ensuring seamless operation in tasks like assembly and welding. Aerospace applications benefit from their ability to provide accurate position data in navigation and control systems.

In manufacturing, absolute encoders are used in CNC machines and automated assembly lines to maintain high precision and repeatability. They also play a critical role in medical devices, such as surgical robots and imaging systems, where accuracy is paramount.

Other industries, such as renewable energy, use absolute encoders in wind turbines to monitor blade positions for optimal energy generation. Similarly, the automotive industry relies on absolute encoders for engine testing and production line automation.

The versatility and precision of absolute encoders make them a vital component in advancing technology across multiple sectors.

Choosing the Right Absolute Encoder for Your Precision Needs

Selecting the right absolute encoder involves evaluating several factors to match your application requirements. The first consideration is resolution. Higher resolution provides greater precision but may come at a higher cost. Assess your system’s needs to strike the right balance.

Environmental conditions are another critical factor. Choose encoders with robust housing and high IP ratings for harsh environments. Consider the operating temperature range and resistance to dust, moisture, and vibrations.

The type of output signal is also important. Ensure the encoder’s signal format is compatible with your system’s controller or processor. Additionally, determine whether a single-turn or multi-turn encoder is appropriate for your application’s complexity.

Finally, consider the encoder’s mounting and connectivity options to ensure seamless integration with your existing setup. By thoroughly assessing these factors, you can select an absolute encoder that delivers exceptional performance and precision.
