Industrial Ethernet Patch Cable Length: The Crucial Impact on Network Performance & Optimal Selection Guide

WhatsApp Channel Join Now

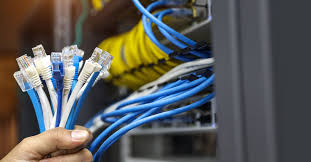

Minimum and Maximum Lengths for Ethernet Cable Categories

In industrial environments, the length of an Ethernet patch cable is a key factor in data stability, throughput, and latency. Consider the example of a long rope that then sags, causing it to take longer for any movement; if a cable is too long, the signals will ebb and speed will deteriorate. Likewise, cables that are too short may incur other issues that undermine reliability.

Choosing an ideal length of cable requires more than estimation; it requires a data-driven methodology that accounts for the harsh settings found in industry. Cable performance at a distance is influenced by many factors, including electromagnetic interference, fluctuating temperature, and power delivery. When it comes to performance, finding that balance helps maintain speed while ensuring the integrity of data transfer, ultimately impacting operational efficiency. Understanding the real-world effects that cable length has on network performance helps system integrators choose Ethernet patch cables that will stand up to the demanding industrial landscape, preventing downtime and prolonging data accuracy.

If you are looking for more information about Industrial Ethernet Patch Cable, go here right away.

What is the Industrial Standard for Channel Length, Patch Cord Limits, and the De-rating Rule?

Industrial Ethernet includes permanent links and patch cords whose total length of run must not exceed 100 meters, in order to ensure signal integrity and effective transmission of the signal. However, remaining under this distance limit does not guarantee optimal signal transmission performance, especially due to the variability of cable gauge, interference, and the environmental factors that impact signal integrity. The gauge of wire (American Wire Gauge or AWG) denotes the thickness of the conductor and has a direct impact on the resistance and crosstalk characteristics. For example, 24 AWG is thicker than 28 AWG, and because the thicker wire provides less resistance, wire gauge becomes an important consideration when determining performance over longer distances.

There is an evident need to apply the de-rating rules to the cable length of patch cords based on the gauge and other wire considerations that will allow the individual to comply and maintain reliability to the network. Picture a water piping system. A wider pipe (24 AWG) will transport water through the length of the pipe, and along the way the water will not lose flow for a greater distance compared to a smaller pipe (28 AWG) that may require shorter lengths due to greater flow loss.

The rules of thumb will de-rate patch cord lengths to:

· Up to 10 meters for 24 AWG

· 7 meters for 26 AWG

· 4 meters for 28 AWG

Engineering charts and schematics can help visually display the distance limits to guide a network designer in balancing the length of patch cords and permanent cables. However, the overall channel runs cannot exceed 100 meters. These rules for de-rated cable lengths are necessary in order to limit excessive attenuation and crosstalk in the network that can create errors and systematically ensure that the overall network will work properly across a variety of challenging environments to maintain a functional and resilient network.

Choosing the Right Industrial Ethernet Patch Cables: 0.15m to 100m for Your Needs.

How Does Excessive Patch Cable Length Impact Jitter, Latency, and PoE Power Loss?

The length of the cable introduces latency because signals will travel longer distances more slowly, with higher propagation delay. This is similar to hearing an echo in a long hallway – the distance determines the delay when the sound will reach your ears. This added delay contributes to increased latency, resulting in less effective real-time communication or synchronization as needed in closed-loop automated systems. Delay is not the only concern, as longer distances introduce jitter, which is the variance in the timing at which signals arrive. The added jitter due to increased distance can impact tight timing issues, with each event occurring at unpredictable times, resulting in chaos when each signal instigates a control action or communication.

For devices powered through PoE, added length creates additional electrical resistance in the primarily copper conductors. The voltage drop will diminish the power delivered by the cabling. As an example, a 50-meter cable will lose as much as 5 percent of the voltage in the cable. This will also impact the performance and reliability of the powered device. Some quantitative thresholds exist as follows. Typical patch cables beyond 10 meters (20 feet) or cabling length resulting in latency beyond 1 microsecond are significant enough that jitter spikes would be expected to have the effect of reducing the stability of the system. The voltage drop from the PoE could be a consideration as well, but it is a best practice to refrain from voltage drops over 5 percent of the nominal voltage.

When taken into account, these aspects of managing the length of patch cabling are a critical part of maintaining an automated process on time, maintaining the integrity of data, and operating power-dependent devices, thus preserving stability within any industrial network.

What is the Short Cable Paradox? How Under-Length Cables Increase NEXT and Return Loss

Even though shorter cables are perceived to be tidy and efficient, cables shorter than approximately 1 meter can introduce unanticipated signal degradation, commonly referred to as the short cable paradox. This problem arises primarily from the inevitable impedance mismatches occurring at the connector interfaces. Imagine you suddenly transition from a wide sidewalk to a narrow alley; this abrupt transition generates signal reflections and disruptive changes.

At these connector interface points, the signal reflections cause increased Near-End Crosstalk (NEXT) and Return Loss, both of which negatively contribute to the data and introduce higher error rates. In this case, the problem goes unnoticed. While most of us want to clean up the patch cable bulk, thinking a shorter cable will enhance performance, we would inadvertently worsen performance with these applications. A minimum length of approximately 1 meter should mitigate these problems by maintaining proper impedance matching and reducing interference through the connections, in order to preserve the signal quality necessary for industrial Ethernet applications.

How Do Cat6, Cat6a, and Cat8 Cables Perform under Realistic Industrial Length Constraints?

Every category of cable has its performance characteristics, but real-world performance is majorly influenced by severe industrial conditions and length. At 30 meters, a Cat6 cable will support 1 Gbps on standard industrial networks. Cable runs in length closer to 55 meters introduce risk of degradation, especially in high interference MICE environments. In this situation, derating is necessary – meaning reduced speed to maintain the suggested performance margin. By moving to a Cat6a cable, data capacity increases, with the ability to transmit 10 Gbps at nominally 55 meters, but industrial stressors such as chemical exposure and mechanical vibration reduce the practical limit again, often by 10 to 20 percent lower than 55 meters.

Cat8 cable has performance specifications supporting speeds of up to 40 Gbps, but only on runs of 30 meters or less for harsh industrial conditions. It is important to note that high-frequency signaling introduces sensitivity to environmental noise and thermal stress, which will lead installation practices to be stricter. The derating graphs show the gap between theoretical maximum cable length and how the cable actually performs under unique industrial environments that suffer from extremes in temperature, electromagnetic interference, and other hazards that could be physical or operating characteristics. For instance, a cable rated for 100 meters may only work effectively in an industrial environment for 70–80 meters. Choosing the right cable for the application is a balancing act between speed capabilities, self-preservation in the environment, and length limitations, while ensuring proper upgrade paths and assuring confidence in the deployment of industrial Ethernet networks.

Benchmarking Signal Attenuation, Jitter, and PoE Voltage Drop Across Patch Cable Lengths

Data from the field test illustrates the extent to which the cable length impacts key network parameters. In the case of signal attenuation, measured in decibels (dB), it increases steadily with the increased cable length. For example, a 2-meter cable will normally show very little signal loss, in the neighborhood of 1 dB, whereas a 50-meter cable can show close to 5 dB of loss, which will start to compromise the signal. In a similar manner, jitter, which represents timing errors and is measured in nanoseconds (ns), will also follow this pattern. A short 2-meter cable would typically show jitter less than 10 nanoseconds; however, jitter can exceed 40 nanoseconds with increasing cable length, which would disrupt sensitive data transmissions.

PoE voltage drop increases with longer cable lengths due to higher resistance in the conductive wire. Data shows very little voltage change, less than 0.2 volts, at 2 meters, but at 50 meters the voltage drop approached 1.0 volt, which may affect the operation of the device. The conceptual figures show an almost linear relationship of attenuation and jitter increases with increasing patch cable length, while the voltage drop characteristics accelerate over long cable lengths, approximately 30 meters. These quantitative data points illustrate the importance of keeping the length of patch cables at a minimum to maintain stable signal and power transmission to devices within a proper distance of the hub or switch, especially in practical industrial network configuration designs.

How to Troubleshoot Industrial Ethernet Performance Issues Related to Patch Cable Length?

When patch cables experience issues, the first tool needed will be fairly simple equipment and straightforward processes that will help isolate and narrow down the patch cables. The process starts with Time Domain Reflectometry, or TDR, where a pulse responds to a change in impedance and plots the length of the cable on the screen while you can see the point of the fault — whether it is a break or degradation of the cable. Once you have a few TDR tests, you can build on the TDR results with communications metrics such as Cyclic Redundancy Check, or CRC error content. This is where you need to identify whether errors, jitter, or packet loss patterns are pointing to a section of cable or port for troubleshooting.

Once you collect TDR readings and communications performance metrics, the next direct step is to perform a sequential or cascading cable replacement of suspect cable with ones you know to be good and tested. This step would also take some additional time, but you would be testing faults related to length or degradation of the cable. If you have not lost everyone at this point, you have now suspended your length measurement/testing with performance management benchmarks (errors, jitter, etc.), and you effectively have a toolkit — a pretty complete toolkit for addressing and moving through possible length-related disruption to performance in the network. This layered, go-slow approach should demystify your situation, reducing the complexity of a complicated situation in industrial Ethernet with a built-in mechanism for isolating most cable-related faults and documenting clearly what you found to return to optimal performance as quickly as possible with the proper due diligence for your customer if needed.

Intermittent Control Failures Caused by Excessive Patch Cable Length and PoE Voltage Drop

A complex network of industrial devices suffered intermittent control failures, leaving the engineering teams confused for a few weeks. The investigation focused on the patch cables that exceeded the standard length. Although it seems trivial, having excess length reduces the PoE voltage. The voltage drop resulted in intermittent power outages and sporadically disabled devices. These outages disrupted the control automation sequence and resulted in many process interruptions.

The control system was under continuous monitoring, taking advantage of the installed PoE voltage sensors located throughout the network. This was useful since most of the significant voltage drops occurred around critical hardware. In addition to monitoring the PoE voltage, error logs and latency observations indicated problems with communication. Remedial actions were taken to replace the extended patch cables with shorter cables for compliance with the patch cable standards, as well as reconfiguring PoE power injector settings to account for the unavoidable lengths of cable. After taking those steps, the standard control function and stability of the network were restored. This incident demonstrates the material cumulative risk associated with having too long of a cable length. Clearly, the need for a voltage monitoring system is relevant, as well as strict compliance with the patch cable length standards to mitigate power supply and communication failures.

How to Select the Optimal Industrial Ethernet Patch Cable Length for Network Integration?

To determine how to optimize patch cable length requires careful consideration of multiple evaluations that include environmental conditions, cable standards, and power requirements. To begin, evaluate the MICE conditions—mechanical conditions, ingress protection needs, chemical exposure, and environmental factors that affect cable durability and performance.

The next evaluation is to apply de-rating calculations to maximum channel length, with consideration for the gauge of the conductor and the standard practice of potential industrial interference. The concept of de-rating in conjunction with maximum length allows you to work within the limits of any standards. The next evaluation will be to incorporate any PoE (Power over Ethernet) power delivery specifications needed to deliver PoE to the device while remaining within acceptable voltage and distance specifications. You do not want to deliver power to a device below its power requirements or risk system performance as a result of voltage drop or distance.

The steps to practical application include:

· Determining MICE classification and estimating the level of impact.

· Calculating a safe maximum channel length based on the de-rating principles defined above, considering permanent link + patch cord.

· Determining voltage margin needed for the PoE-powered device.

· Selecting appropriate patch cable length to stay within the previous calculations while also considering installation handling.

By working through a process like the above, you will eliminate the guesswork, allowing you to confidently tackle the design and upgrades to an industrial Ethernet network that will deliver consistently high-performing results time after time.
