Essential Guide to Water Resistance Testers: How They Work and Why You Need One

In industries ranging from outdoor apparel and medical textiles to construction materials and packaging, one property often makes the critical difference between product success and failure: water resistance. For manufacturers and quality control labs, quantifying this property isn’t about guesswork—it’s about precise, repeatable science. This is where a water resistance tester, specifically a Hydrostatic Head Tester, becomes an indispensable tool. These advanced instruments provide the definitive data needed to ensure that materials perform as promised, protecting brand reputations and consumer safety.

What Exactly is a Water Resistance Tester (Hydrostatic Head Tester)?

At its core, a hydrostatic head tester is a precision instrument designed to measure a material’s ability to resist the penetration of water under increasing pressure. The fundamental principle is straightforward: the instrument applies a controlled column of water (or air pressure simulating a water column) to one side of a fabric or film sample. The pressure is gradually increased until water penetrates through the material. The maximum pressure the material withstands before leakage is its hydrostatic head rating, typically measured in millimeters of water column (mmH₂O) or Pascals (Pa).

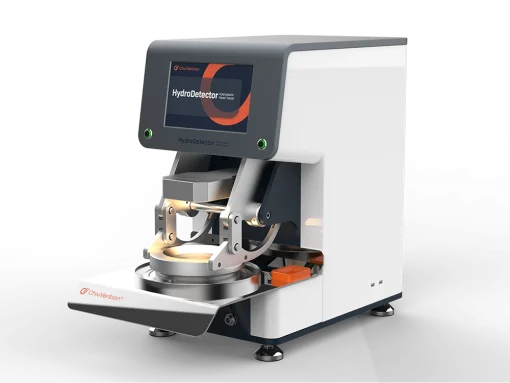

Modern iterations, like the HydroDetector Hydrostatic Head Tester, have transformed this basic process. They feature advanced AI tools and high-definition cameras to automate detection and eliminate human error. The test concludes not when a technician sees a drop, but when the system’s sensor definitively records the pressure at the moment water flows through or the third drop appears, ensuring exceptional accuracy and repeatability.

Key Applications: What Materials Can Be Tested?

A sophisticated water resistance tester is versatile, built to evaluate a broad spectrum of materials crucial across multiple sectors:

• Textiles & Apparel: This is the most common application. Testers are used to grade everything from lightweight rain jackets and hiking gear to heavy-duty tarps and military tents. The performance data directly correlates to the “waterproof” claims on product labels.
• Technical Fabrics: Medical drapes and gowns, geotextiles, and filtration membranes all require precise water resistance levels for safety and functionality.
• Leathers: Footwear, bags, and upholstery leather must be tested to ensure treatments and the natural material itself provide adequate protection.
• Films & Membranes: This includes packaging films, architectural membranes, and specialized laminates used in construction and industrial applications.

The Hallmark of Quality: Compliance with International Standards

A professional-grade water resistance tester isn’t just a piece of lab equipment; it’s a gateway to global markets. Reputable testers are engineered to comply with a comprehensive suite of international test standards, ensuring test results are recognized and accepted worldwide. Compliance is non-negotiable for any serious manufacturer or testing facility.

Key standards supported by instruments like the HydroDetector include:

• ISO 811 and ISO 1420: Core international standards for textile and fabric coating water resistance.
• AATCC 127 (Option 2) and AATCC 208: Authoritative American standards for textile testing.
• JIS L 1092: The primary Japanese standard for textile water resistance testing.
• GB/T 4744 and GB/T 41010: Essential Chinese national standards.
• EN 1734: A key standard for protective clothing materials.
• ISO 9073-16 & GB/T 24218.16: Standards specifically for nonwoven materials.

This multi-standard capability allows one instrument to serve diverse industries and facilitate product certification across different regions.

Essential Features of a Modern Water Resistance Tester

When selecting a hydrostatic head tester, look for features that enhance accuracy, efficiency, and ease of use:

1. Automated Endpoint Detection: The integration of AI and visual sensors to detect water penetration is a game-changer. It removes subjective human judgment from the test endpoint, delivering perfectly consistent results.
2. High-Resolution Data & Reporting: Modern systems don’t just give a number; they record the entire pressure curve and can generate detailed, exportable test reports for quality records and analysis.
3. Intuitive Software Interface: User-friendly software controls the test parameters, manages sample data, and simplifies calibration and maintenance procedures.
4. Robust & Precise Pressure System: The heart of the instrument is a system that can generate and measure pressure with extreme stability and precision, often offering multiple pressure rate options to match different standard methods.
5. Durable Sample Clamping: A leak-free, secure clamping mechanism is vital to prevent edge leakage, which would invalidate the test and skew results.

Choosing and Using Your Tester: A Practical Guide

Investing in the right water resistance tester requires careful consideration. First, identify the primary standards your industry demands. Ensure the instrument you choose is fully validated for those specific protocols. Consider your sample throughput—features like automated testing and quick-clamp fixtures can drastically improve lab efficiency. Don’t overlook supplier support; reliable calibration services, available spare parts, and responsive technical support are crucial for maintaining your instrument’s accuracy over its lifetime.

Proper use is equally important. Always prepare samples correctly as specified by the standard, ensuring they are free from wrinkles or pre-existing damage. Perform regular calibration checks using certified weights or reference materials to maintain traceable accuracy. Finally, control your lab environment, as temperature and humidity can sometimes influence test results for certain materials.

Conclusion: The Foundation of Trust and Performance

In a world where performance claims are scrutinized, the water resistance tester stands as the ultimate arbiter of truth. It provides the objective, standardized data that fuels innovation, guarantees quality, and builds consumer trust. From ensuring a surgeon stays dry and sterile to guaranteeing a hiker stays warm and dry on a mountain trail, the humble hydrostatic head test plays a silent yet critical role in product development and safety.

Whether you are a quality manager, a product developer, or a research scientist, understanding and utilizing this essential technology is key to advancing material science and delivering products that truly live up to their promise.
